Zotac GTX 970 AMP! Omega Core Edition Graphics Card Review

DESIGN OVERVIEW

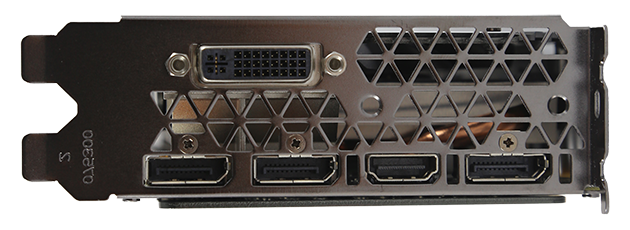

Starting with the input and output panel, you can see that the Zotac GeForce GTX 970 AMP! Omega Core Edition features a HDMI (4K @ 60 Hz), three DisplayPorts (4K @ 60 Hz), DVI port (2560×1600) for your convenience.

Opposite of the PCI Express 3.0 x16 connector, you will find two 6-Pin PCIe power connector ports, as well as two SLI slots for up to 4-way SLI support. At the top of the graphics card we can see Zotac’s custom IceStorm cooling system, which features three 80mm fans, a large aluminium heatsink, which spans the entire length of the card and is complete with 3 large copper heat-pipes for increased heat dissipation. We’ll be putting this cooler through its paces later in our overclocking and cooling performance tests.

Zotac’s all aluminum ExoArmor housing is slick and gives the card an aggressive look without looking too flashy or ostentatious, and the all-gray/black/silver color scheme will fit well in just about any system.

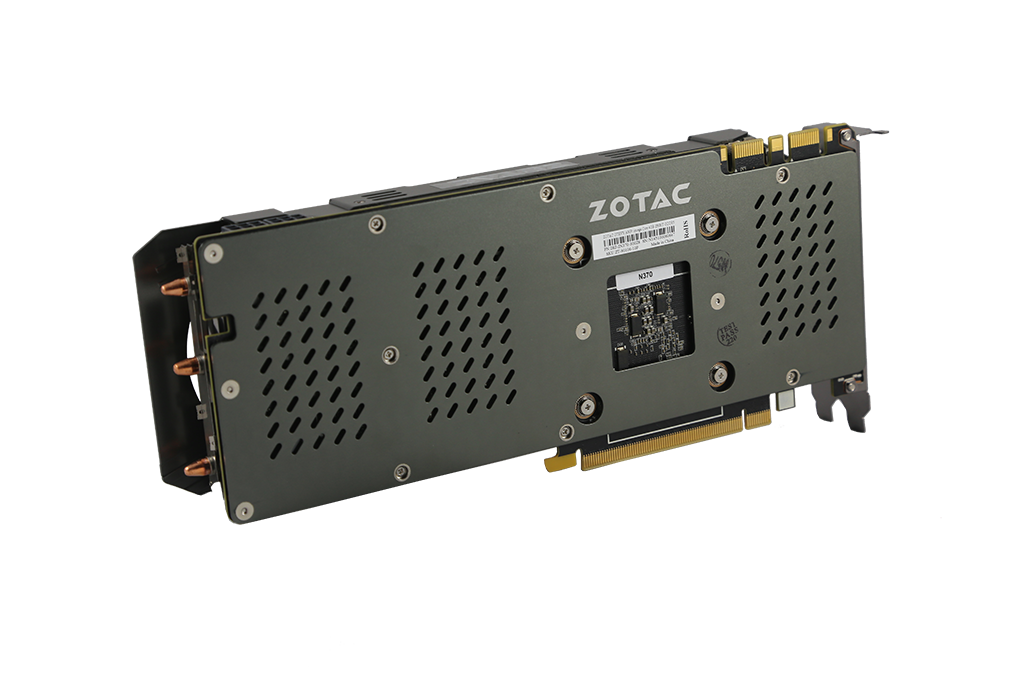

The bottom of the graphics card features a full length premium back-plate that covers the PCB, and provides a much more stylish look for gaming chassis with side panel windows.
