Mushkin Redline DDR4-2666 Memory Review

TECHNOLOGY X TESTING PROTOCOL

At Technology X, we test our RAM slightly different depending upon the product’s marketed purpose, whether it be an entry-level budget kit or a high-end enthusiast level kit.  Our goal is to test in a system that has been optimized with our SSD Optimization Guide, however, CPU C State alteration may or may not have occurred depending on the motherboard and BIOS configurations. Additionally, we also try to include links to the benchmarks used in our report so that you as the reader can replicate our tests to confirm that your system performs the way it should

TECHNOLOGY X TEST BENCH

test_benh_donny_phanteks

All of the components we use for testing are standard off-the-shelf PC components from major manufacturers, which can be purchased at a variety local retailers and online. We’ll also provide links to our components for those of you that find an interest in our equipment.

We’d like to thank Intel and ASRock for providing vital components in this test bench, without which this report would not be possible. Check out our review of the Intel Core i7 5960X and the ASRock X99 OC Formula used in this report.

PC CHASSIS: Thermaltake Core V51
MOTHERBOARD: ASRock X99 OC Formula
CPU: Intel Core i7 5960X @ 4.0GHZ OC
MEMORY: N/A
CPU COOLER: Phanteks PH-TC14PE
POWER SUPPLY: Corsair TX850 v2
GRAPHICS CARD: ASUS STRIX GTX 970 OC
STORAGE: ADATA 1TB Premiere Pro SSD

BENCHMARK SOFTWARE

To test our RAM we’ll use a variety of benchmarking tools and productivity applications including AIDA64, Cinebench R15, WinRAR, 7-Zip, Photoshop CC, and Handbrake. We’ll also do some gaming tests using FRAPS to measure FPS performance.

OVERCLOCKING AND LATENCY TUNING

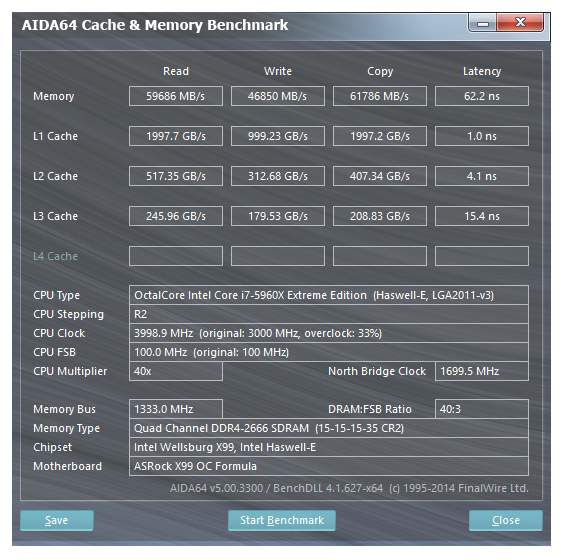

To test our RAM, we’ll be doing some overclocking and latency tuning to see what the best settings we can run the RAM at outside of its guaranteed rating of 2666MHz memory speed and 15-15-15-35 timings. However, before we start tuning, we’ll run a memory benchmark using AIDA64 to get a performance baseline.

mushkin-redline_ddr4_16gb_cachemem_ratedSo now that we’ve got that out-of-the-way, we’ll start tuning and overclocking our memory. After some tweaking, we were able to get some fairly good results, however we were unable to successfully overclock our memory past its rated speeds of 2666MHz. That being said, with a little bit of voltage adjustment we were able to get our timings significantly lower, and even hit our lowest yet of 12-12-12-32, at 2133MHz. We increased the voltage from the stock 1.200v, to 1.220v.

Here are the best timings we got at each speed we tested the memory at:

Speed: Timings
2133: 12-12-12-32
2400: 13-13-13-33
2666: 14-14-14-34

So not too bad, all things considered. We do wish we could have gotten the RAM to run stable at 3,000MHz, or even 2,800MHz. Sadly, these are the breaks of memory overclocking.

Mushkin has become one of the better known brands in desktop memory by bringing their customers top quality, performance and low prices. Sure, if you've never built your own computer, you've probably never heard of them, but the same could be said about any number of component manufacturers. That being said, if you have heard of them, odds are it has been good things. That is why we're excited to bring you a review of the latest in their lineup of consumer memory, the Mushkin Redline DDR4-2666 quad-channel memory kit. PACKAGING, PRICING & SPECIFICATIONS The packing of this memory kit is different from…

Review Overview

Product Build
Performance
Design
Warranty
Price

FROSTBYTE!

If you're looking for an enthusiast level overclocking kit, this is probably not it. For the right price, you won't be displeased with the performance of the Mushkin Redline Frostbyte!

User Rating: 2.18 ( 3 votes)
