Samsung 850 Pro SSD Review (128GB) – 3D V-NAND Creates a New Playing Field

Introducing the world’s first consumer SSD with Samsung’s second generation of 3D NAND called V-NAND, the new and improved Samsung 850 Pro! Yes, that is right, 3D NAND. Oh, and do I even need to mention that it is fast?

Finally, we are making break throughs in engineering and moving on to better NAND design. Samsung’s V-NAND offers significant advancements to SSDs over previous generation planar 2D designs. The main benefit is that it will allow for twice the scaling in the future, as manufacturing processes continue to get smaller. The new 32-layer 3D V-NAND flash endurance has more than doubled, compared to conventional 2D planar type NAND flash, and their endurance rating reflects it coming in at 150 TBW. Furthermore, power consumption is lowered up to 40 percent with this new design. Hopefully soon we may be seeing some 2TB SSDs in the consumer market with this new V-NAND.

Samsung 850 Pro Angle

Now if you thought that high speed and new innovative 3D V-NAND was the only good news about this new drive, you are in for a nice surprise. As with SanDisk’s Extreme Pro, Samsung is now designating a 10-year warranty to their 850 Pro as well! Talk about a new market trend and confidence in product manufacturing. I like where this is going and hopefully this will encourage those with 3-year warranties to at least stretch to 5 years.

LISTED SPECIFICATIONS AND PRICING

The Samsung 850 Pro SSDs come in a 7mm 2.5″ form factor and is available in 128GB, 256GB, 512GB, and 1TB capacities. MSRPs for the drives are $129.99, $229.99, $429.99, and $729.99 respectively. While not on the market yet, pre-orders will be taken starting July 1st and shipping will commence on July 14th.

The 850 Pro features garbage collection and TRIM, ECC, and SMART as well as AES 256-bit Full Disk Encryption (FDE) and supports TCG/Opal V2.0, Encrypted Drive (IEEE1667). Also with the 850 Pro, comes support for Samsung Magician’s RAPID mode RAM caching. As an update, it will be able to use up to 4GB of RAM for RAPID rather than the old 1GB limit when system memory is 16GB, i.e., 25% of the PC system. You will need to install Samsung Magician 4.4 or newer for compatibility, when available. Our copy is a BETA version at this point.

Specs

The chart above shows designated speed ratings for differing capacities in the 850 Pro line up. 4K QD1 read and write IOPS are very impressive.

Check out the Samsung 850 Pro 1TB SSD Report by Les at TheSSDReview!

850 PRO PACKAGING AND COMPONENTS

Exterior packaging consists of a plastic casing enclosed by a cardboard box, accented in a black and red theme.  Inside is the typical warranty information, quick installation guide, the 850 Pro, and two Samsung SSD case stickers.

Samsung 850 Pro Box Front Samsung 850 Pro Samsung 850 Pro Box Back

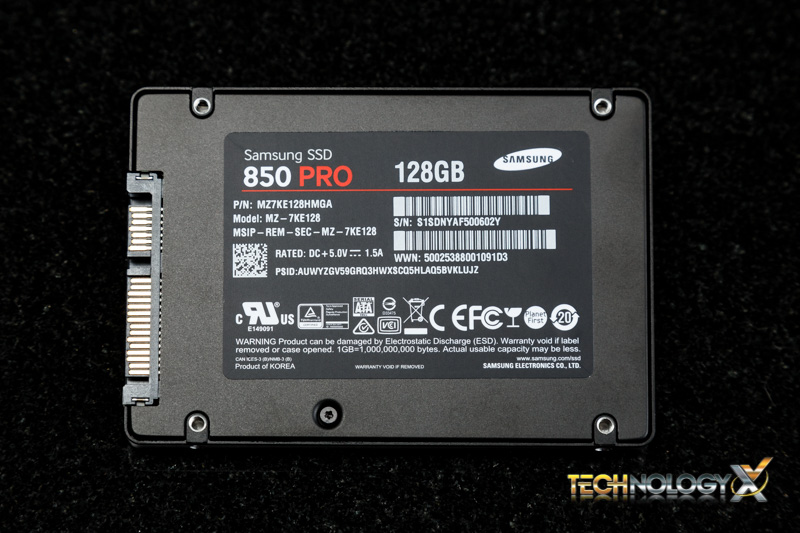

The shell of the 850 Pro is constructed of aluminum and covered in black powder coat. It is 7mm thick to ensure compatibility for the ultrabook market. Holding the casing together are three pentalobe type security screws, which I may say where very hard to take out without the proper screwdriver bit. Samsung does not want buyers to open the 850 Pro.

Samsung 850 Pro Front Samsung 850 Pro Back

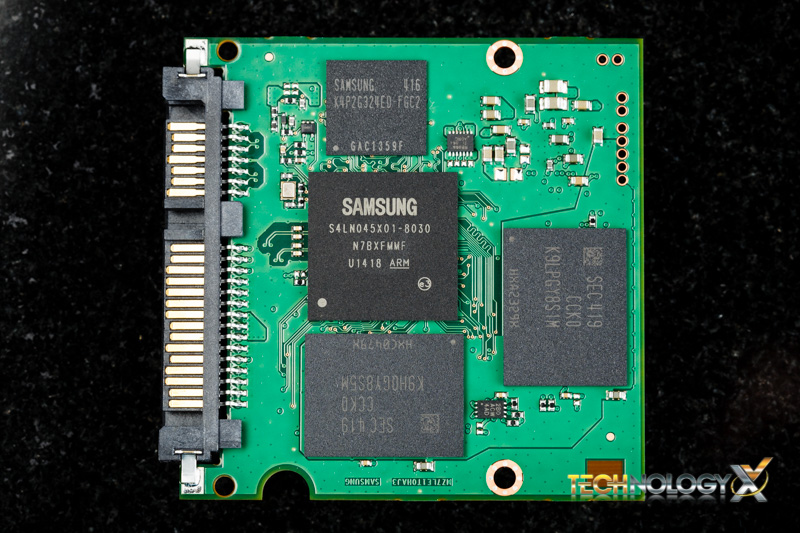

Once opened up we can see the PCB is very compact, size being around half the length of the case.

Samsung 850 Pro-7 Samsung 850 Pro-8

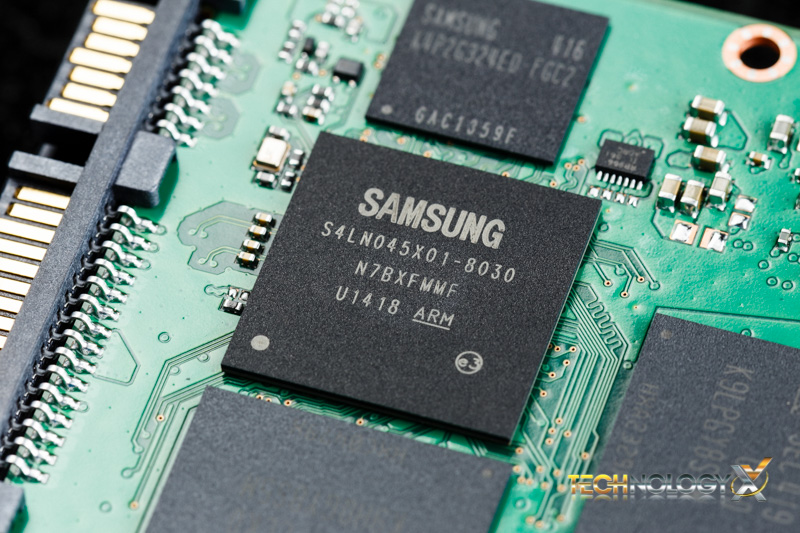

The controller in the Samsung 850 Pro is not new. It is the Samsung 3-core MEX controller, however, the ARM Cortex (R4) processor runs 100MHz faster than the MDX of the 840 Pro, at 400MHz.

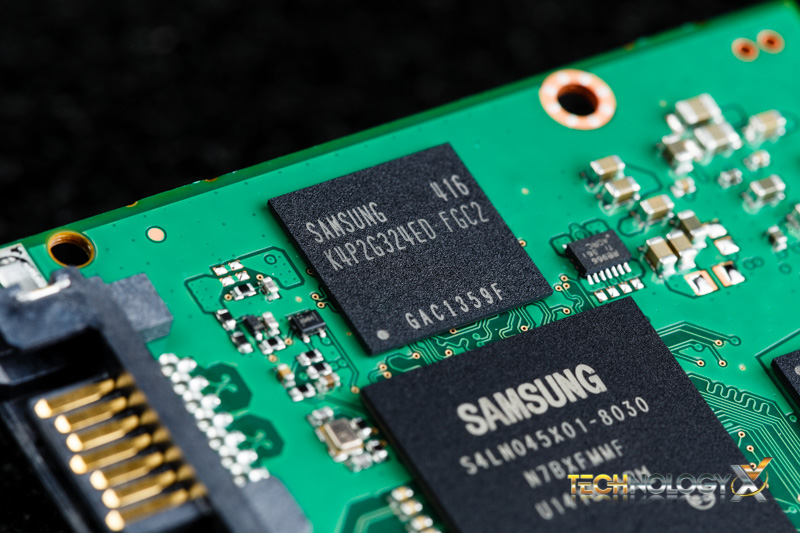

Above the controller, we see the Samsung LPDDR2 DRAM cache chip. It is 256MB in size for the 128GB model. The 256GB and 512GB models come with 512MB chips and the 1TB model comes with a 1GB DRAM chip.

Samsung 850 Pro Controller Samsung 850 Pro DRAM

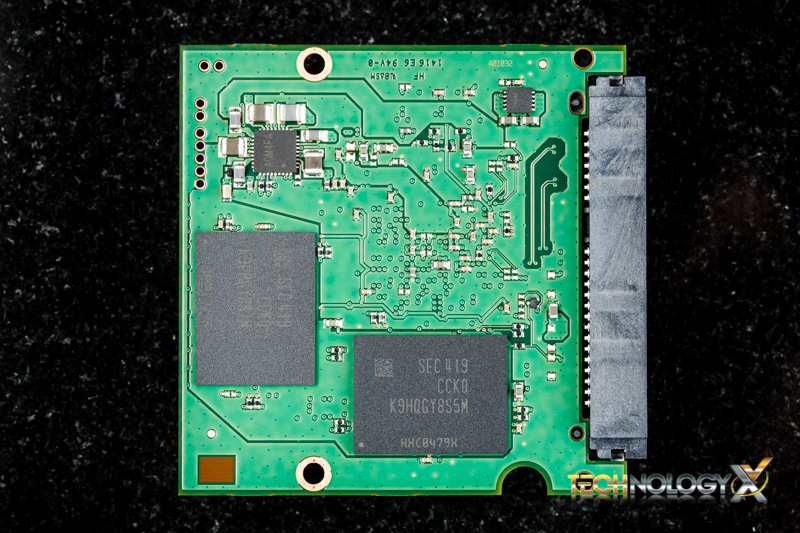

The NAND on board is Samsung’s new 32-layer 3D V-NAND chips. There are four V-NAND packages in total, two on the front and two on the back. Interestingly, here are 2 different part numbers for the V-NAND. They provide an overall raw capacity of 128GB; 119GB once formatted in the OS.

Samsung 850 Pro VNAND

Introducing the world's first consumer SSD with Samsung's second generation of 3D NAND called V-NAND, the new and improved Samsung 850 Pro! Yes, that is right, 3D NAND. Oh, and do I even need to mention that it is fast? Finally, we are making break throughs in engineering and moving on to better NAND design. Samsung's V-NAND offers significant advancements to SSDs over previous generation planar 2D designs. The main benefit is that it will allow for twice the scaling in the future, as manufacturing processes continue to get smaller. The new 32-layer 3D V-NAND flash endurance has more than…

Review Overview

Build
Performance
Consistency
Features
SSD Warranty

The Frist Consumer VNAND SSD!

The Samsung 850 Pro is the highest performing SATA 6Gb/s SSD we have reviewed to date. Packed with new innovative 3D V-NAND, full encryption support, and backed by an industry leading 10 year warranty, it is definitely worth a look!

User Rating: 2.73 ( 37 votes)

3 comments

  1. Do you feel like this is a game changer as far as SSD’s go? or just a good alternative to buying the Samsung 840 pro(which I own) ?

    • Well, performance has only slightly been improved, not enough to really be perceivable compared to your own 840 Pro. We don’t have any consistency tests of the old pro so we can’t direct compare for you yet. But the 10 year warranty, endurance increase, and the new V-NAND are definitely game changers.

      • Yeah I had a feeling that was going to be the case with the SSD, so if you do not already have an SSD and looking for a top of the line product in the consumer product then the 850 pro is a very good way to go. I remember with the EVO cam out with the RAPID technology and how pumped some enthusiasts were about the idea. I also remember that you mentioned it would eventually be able to be used by a 840 pro model, and one day while updating my firmware, it said Rapid available for these models and I was pretty excited. Especially because their is not just benchmark differences but also real world difference. Do you know if this SSD will have access to something similar? or maybe another a in the 850 line will. Thanks for the reply and keep writing man, I’ll keep reading.
