Starting with the input and output panel, you can see that the XFX R7 370 4GB Double Dissipation graphics card features a HDMI (4096 x 2160), one DisplayPort (4096 x 2160), two DVI ports (DVI-D and DVI-I at 2560 x 1600) for your convenience.
Opposite of the PCI Express 3.0 x16 connector, you will find the 6-Pin PCIe power connector ports, as well as a single Crossfire slot.
The XFX R7 370 has a basic black design on the top and a straightforward black PCB.

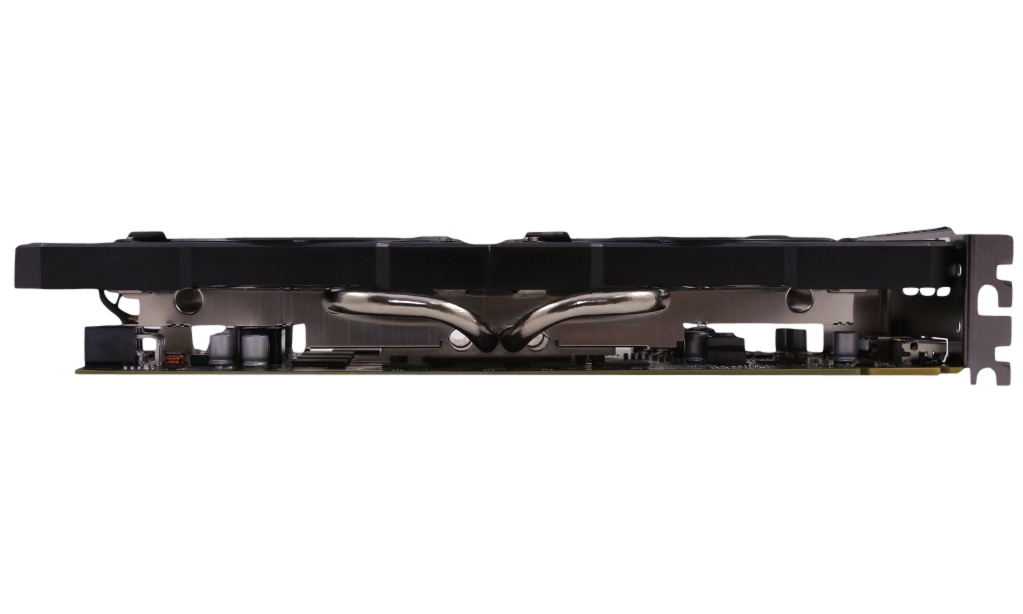

This card features two concepts for cooling, which is evident in their design. The first is Ghost Thermal 3.0, which utilizes optimized fin arrays and lengthen heat pipes. The second is Double Dissipation, which features Dual 90mm IP-5x fans and optimized BIOS fan profile to lower the overall noise level, which is said to lower noise by on average 7dB while 3d rendering. However, we did find this card to be a little louder than expected.
