SanDisk Extreme Pro & WD Black M.2 NVMe SSDs Review (1TB) – 3.4GB/s and 500K IOPS

PCMARK 8 STORAGE

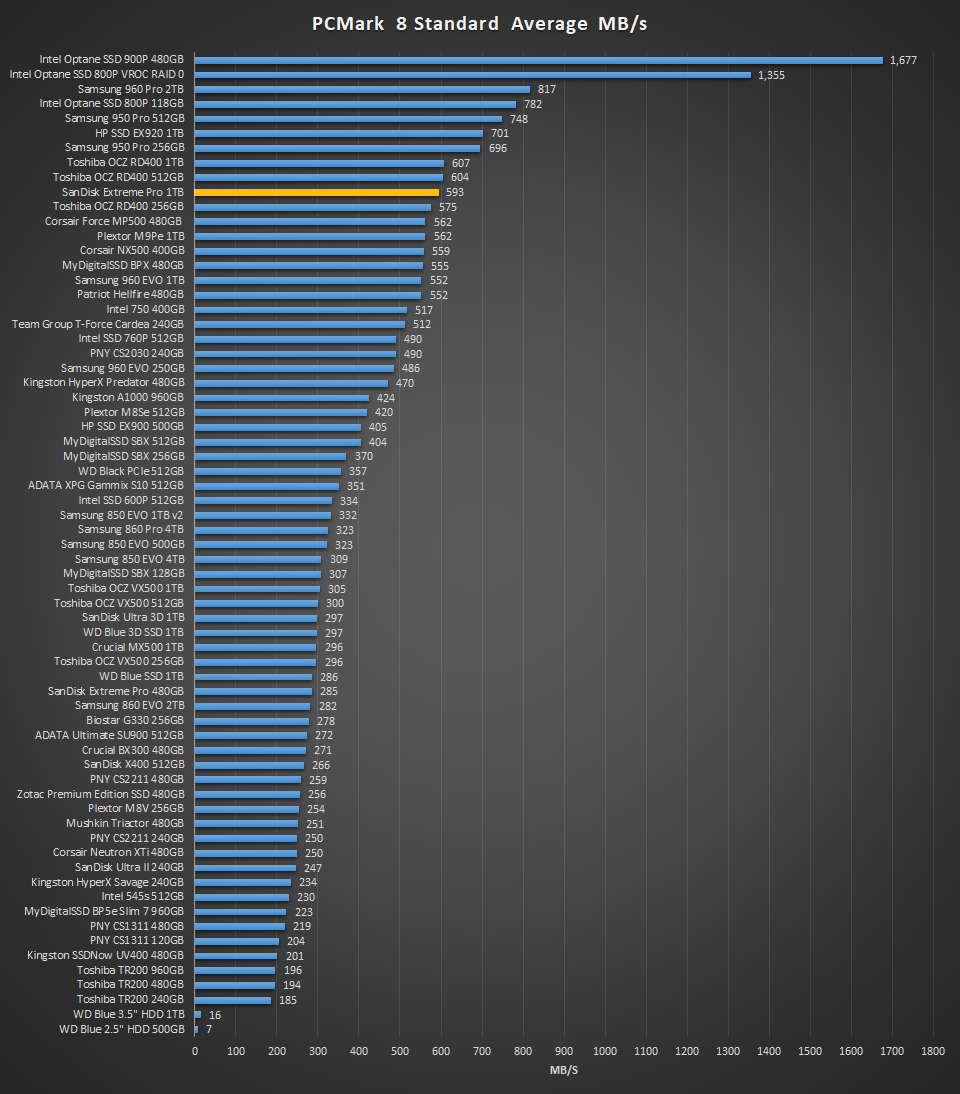

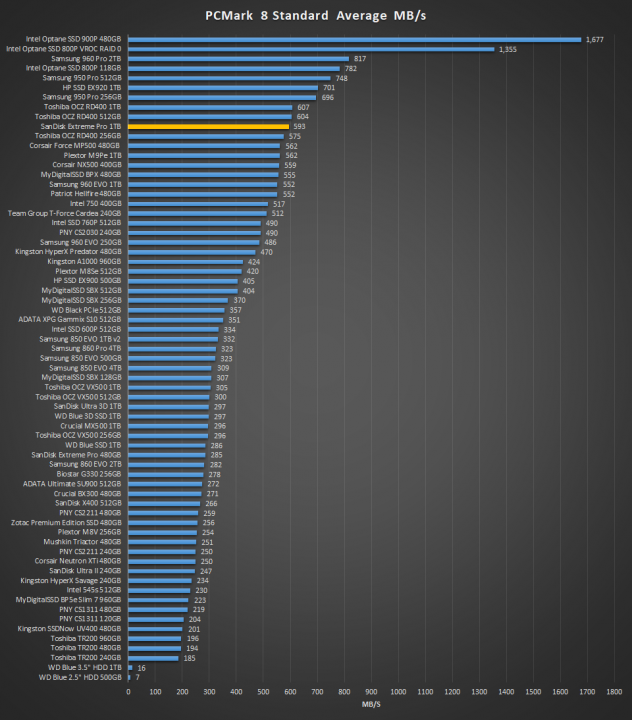

The SSD Review uses PCMark 8’s Storage test suite to create testing scenarios that might be used in the typical user experience. With 10 traces recorded from Adobe Creative Suite, Microsoft Office and a selection of popular games, it covers some of the most popular light to heavy workloads. Unlike synthetic storage tests, the PCMark 8 Storage benchmark highlights real-world performance differences between storage devices. After an initial break-in cycle and three rounds of the testing, we are given a file score and bandwidth amount. The higher the score/bandwidth, the better the drive performs.

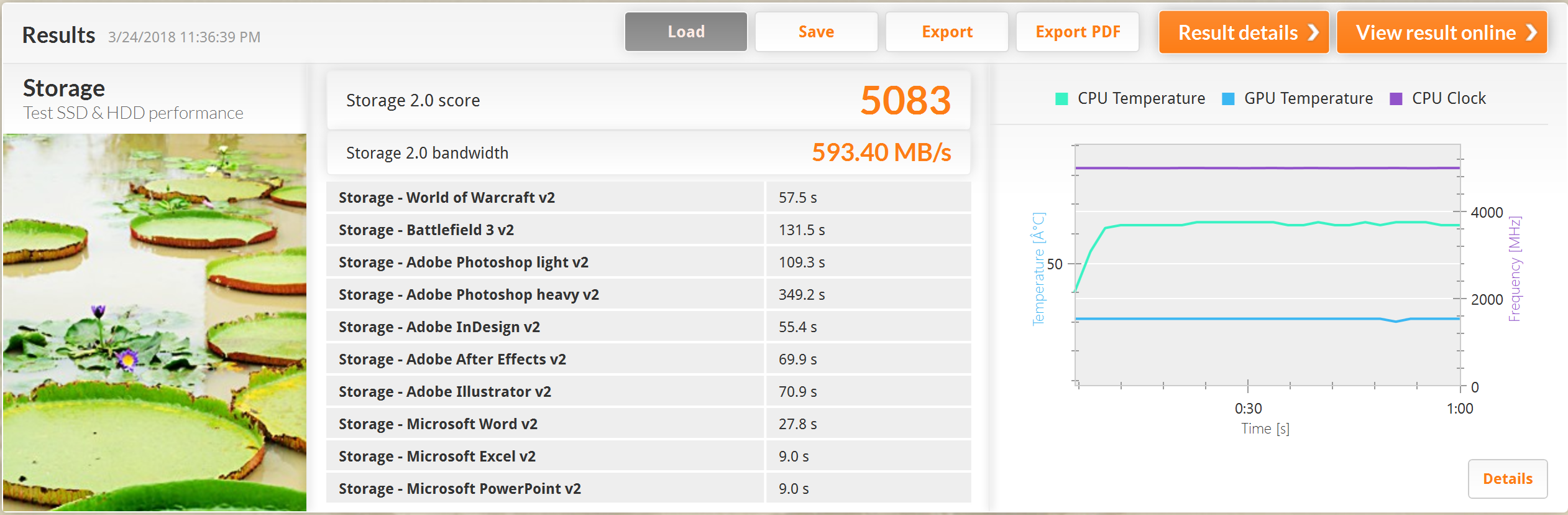

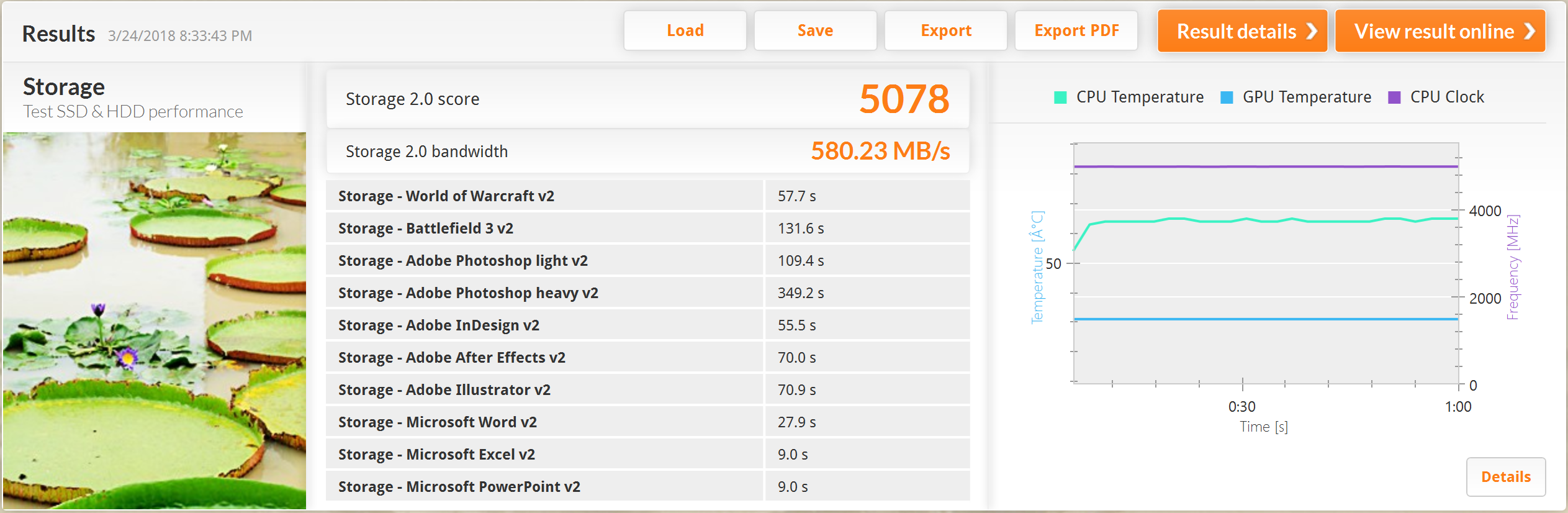

Once again, both drives put up almost exact scores with the SanDisk Extreme pro having 5083 Points to 5078 Points for the WD Black.

PCMARK 8 EXTENDED STORAGE WORKLOAD CONSISTENCY TESTING

For our last benchmark, we have decided to use PCMark 8 Extended Storage Workload in order to determine steady-state throughput of the SSD. This software is the longest in our battery of tests and takes just under 18 hours per SSD. As this is a specialized component of PCMark 8 Professional, its final result is void of any colorful graphs or charts typical of the normal online results and deciphering the resulting excel file into an easily understood result takes several more hours.

There are 18 phases of testing throughout the entire run, 8 runs of the Degradation Phase, 5 runs of the Steady State Phase and 5 runs of the Recovery Phase. In each phase, several performance tests are run of 10 different software programs; Adobe After Effects, Illustrator, InDesign, Photoshop Heavy and Photoshop Light, Microsoft Excel, PowerPoint and Word, as well as Battlefield 3 and World of Warcraft to cover the gaming element.

  • PRECONDITIONING -The entire SSD is filled twice sequentially with random data of a 128KB file size. The second run accounts for overprovisioning that would have escaped the first;
  • DEGRADATION PHASE – The SSD is hit with random writes of between 4KB and 1MB for 10 minutes and then a single pass performance test is done of each application. The cycle is repeated 8 times, and with each time, the duration of random writes increases by 5 minutes;
  • STEADY STATE PHASE – The drive is hit with random writes of between 4KB and 1MB for 45 minutes before each application is put through a performance test. This process is repeated 5 times;
  • RECOVERY PHASE – The SSD is allowed to idle for 5 minutes before and between performance tests of all applications. This is repeated 5 times which accounts for garbage collection; and
  • CLEANUP – The entire SSD is written with zero data at a write size of 128KB

In reading the results, the Degrade and Steady State phases represent heavy workload testing while the recovery phase represents typical consumer light workload testing.

PCMARK 8 RESULTS

As you can see, performance is recorded in terms of Bandwidth and Latency. Bandwidth (or throughput) represents the total throughput the drive is able to sustain during the tests during each phase.  Typically, latency has been addressed as the time it takes for a command to be executed, or rather, the time from when the last command completed to the time that the next command started. This is shown below as ‘Average Latency’.

For a more in-depth look into Latency, Bandwidth, and IOPS check out our primer article on them here.

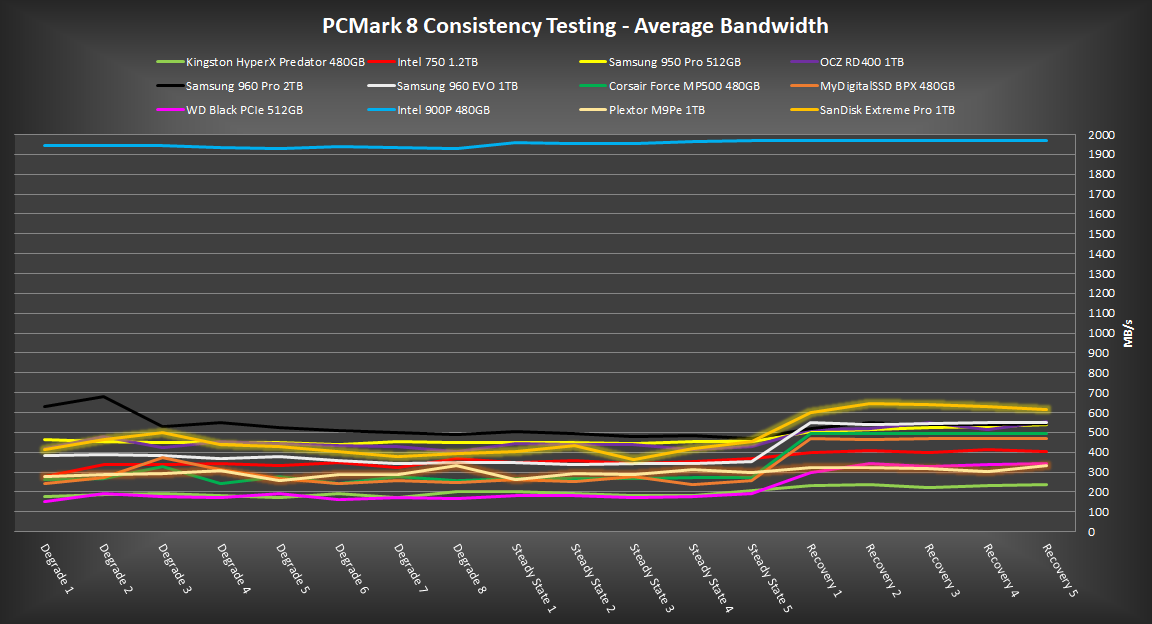

AVERAGE BANDWIDTH (OR THROUGHPUT)

These results show the total average bandwidth across all tests in the 18 phases. In this graph the higher the result the better.

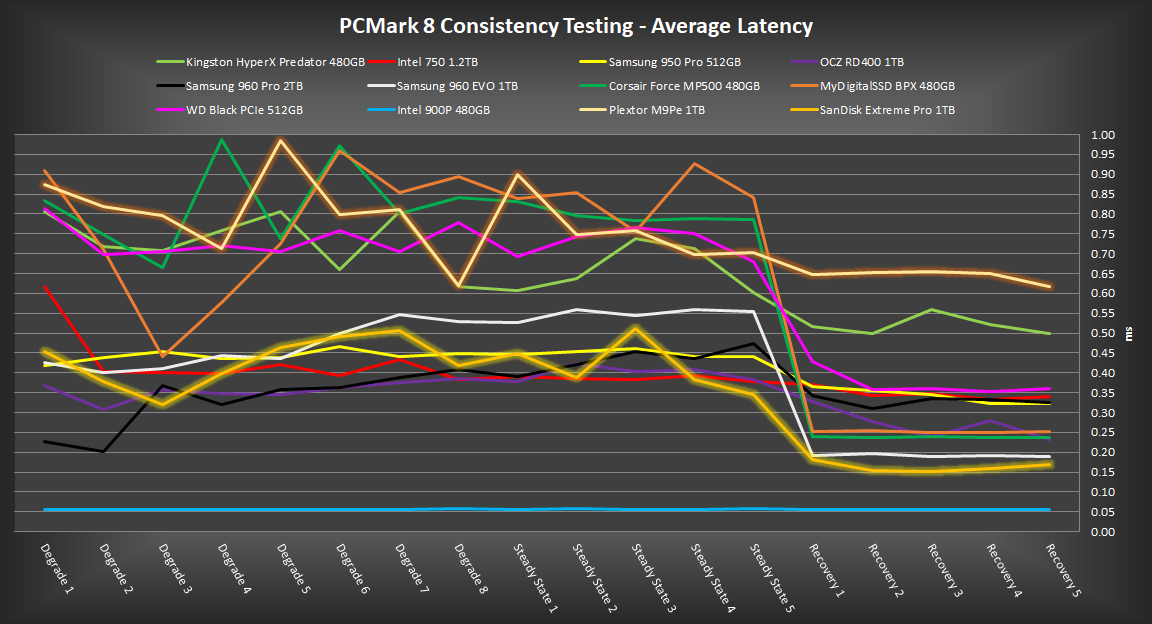

AVERAGE LATENCY (OR ACCESS TIME)

These results show the average access time during the workloads across all tests in the 18 phases. In this graph the lower the result the better.

This particular benchmark represents the SanDisk Expreme pro, although both tests were almost identical.  Both exhibited top-tier throughput (but for the Intel 900P), as well as very low latency.  This was very impressive to see.
